How to Install Your Manifold Kit

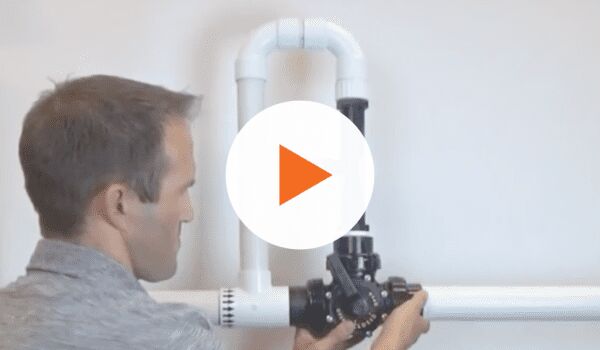

Video: Manifold Install Kit – Gate Valve #

Have a 3-Way Valve Manifold Install Kit? See the tutorial here.

Full Diagram: Manifold Install Kit  #

NOTE: The Manifold injection is the preferred Clear Comfort pool and inground spa system installation method.

Instructions: Manifold Install Kit  #

PLEASE NOTE: Turn main pool pump OFF and switch off main circuit breaker.

1. Pick Location #

• Select a location to install Manifold, see Step 2 for proper water flow configuration position.
• If retrofitting, cut a 11” length of the main return piping where the bypass will be installed.
  • PLEASE NOTE: The Manifold needs 1.5″ of pipe on each side for glue.

2. Select Orientation #

• The Gate Valve Manifold can be installed either left-to-right or right-to-left to match your water flow configurations.
• Simply align the Gate Valve Manifold’s directional flow arrows with the direction of water flow.

3. Connect to Pool Plumbing #

• Install the Gate Valve Manifold into the 11” cut section of pool plumbing, using an appropriate PVC primer and cement.

4. Connect to System & Set Gate Valve Air Flow #

• • The Venturi includes a cap for optional pressure testing. After testing or if not testing, remove the cap & install
    the Air Check Valve & barbed fitting.
  • Connect Air Tubing from the Clear Comfort System’s L-barbed connector to the Manifold’s Air Check Valve.
    • IMPORTANT: The Air Tubing Air Check Valve’s arrow should point away from the Clear Comfort system and to Manifold’s Venturi.
  • Install the Valved Flowmeter Kit. For instructions, click here.
  • Turn on circulation pump and adjust the Gate Valve Manifold’s knob until the Flowmeter meets the required flow rate*.
  • If needed, use the Flowmeter’s knob for fine tuning.
  • * Required system flow rates:
    • CCW100: 5-7 LPM
    • CCW50: 3-5 LPM

Video: Adjust Air Flow to CCW100 & CCW50 – Gate Valve Manifold #

Have a 3-Way Valve Manifold Install Kit? See the air flow adjustment tutorial here.
